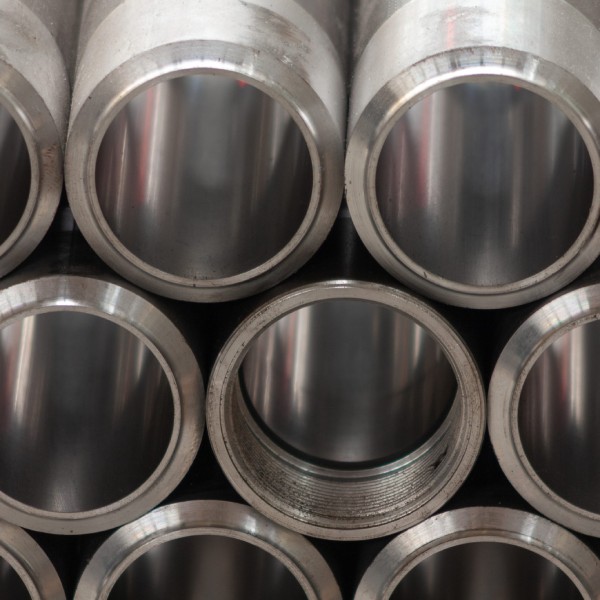

What is Cylinder Tube Honing?
Cylinder tube honing is a precision machining process that creates a perfectly smooth, cross-hatched surface finish inside hydraulic and pneumatic cylinders. This specialised abrasive machining process removes imperfections, restores proper geometry, and creates the ideal surface texture for optimal seal performance and longevity.
At Dynasurf, we utilise advanced honing equipment capable of handling cylinders up to 300mm internal diameter and 2.2 meters in length - capabilities that set us apart from most competitors. Our honing process addresses common cylinder problems including scratches, scoring, corrosion, ovality, taper, and general wear.
The cross-hatch pattern created by honing is crucial for proper lubrication retention, ensuring smooth operation and extending seal life. Our precision honing achieves surface finishes between Ra 0.2 to 0.4 microns, meeting or exceeding manufacturer specifications.
Technical Specifications & Capabilities
Our cylinder honing facility features state-of-the-art equipment designed for maximum precision and capacity:
Diameter Range
25mm to 300mm internal diameter
Length Capacity
Up to 2.2 meters (2200mm)
Surface Finish
Ra 0.2 to 0.4 microns standard
Geometry Correction
Removes up to 0.5mm material
Cross-Hatch Angle
45-60 degrees optimised for application
Tolerance
Cylindricity within 0.02mm
We use diamond and CBN (Cubic Boron Nitride) honing stones selected specifically for each material type, ensuring optimal cutting performance and surface finish. Our CNC-controlled honing machines maintain consistent pressure and speed throughout the process.
Our Honing Process
Systematic approach for perfect cylinder restoration

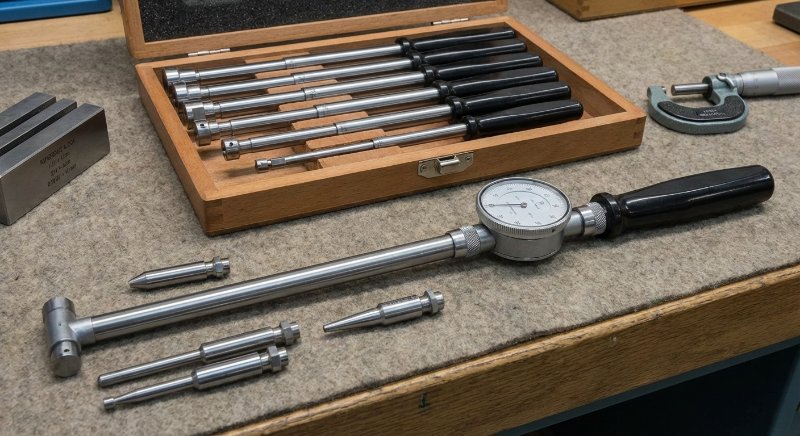

Initial Inspection
Precise measurement of bore diameter, ovality, taper, and surface condition assessment
Pre-Honing Preparation
Cleaning, degreasing, and selection of appropriate honing stones for material type
Precision Honing
Multi-stage honing process with continuous measurement to achieve target specifications
Final Inspection
Surface finish verification, dimensional checks, and quality certification

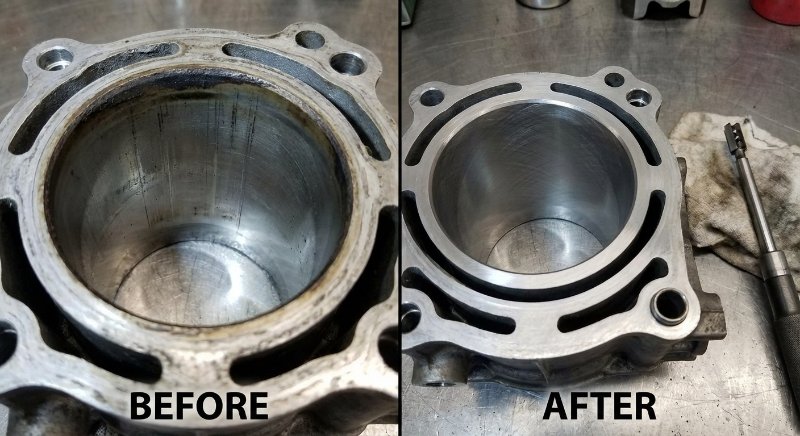

Common Cylinder Problems We Solve
Cylinder tubes can develop various issues that compromise performance and efficiency. Our honing service addresses:
Scratches & Scoring
Deep scratches from contamination or seal failure causing leaks
Corrosion & Pitting
Surface degradation from moisture or chemical exposure
Ovality & Taper
Geometric distortion causing uneven wear and poor sealing
Glazing & Polish
Over-smooth surfaces that prevent proper lubrication retention
